Edit vendor integration setting

The integration enables the automation of data transfers between IWRS and various vendor data providers. Currently, IWRS supports the exchange of shipment data with the vendors' SFTP file servers.

To establish the shipment data providers in IWRS, you add the respective vendors to your study and configure order or dispatch integration settings for them. To be able to configure such integrations, you need to enable the respective option for a vendor. This can be done upon the first time setup or later, upon editing the vendor setting as explained in the following procedure.

To edit a vendor integration setting

  1. In the IWRS application header, select the INTEGRATION tab.

  2. From the left pane, select the Integration Setting subtab.

    Accessing integration setting
    Figure 1. Accessing integration setting

  3. In the Integration Setting table that opens, locate the vendor setting that you want to update and from the Actions column next to it, select Edit pencil_icon.png.

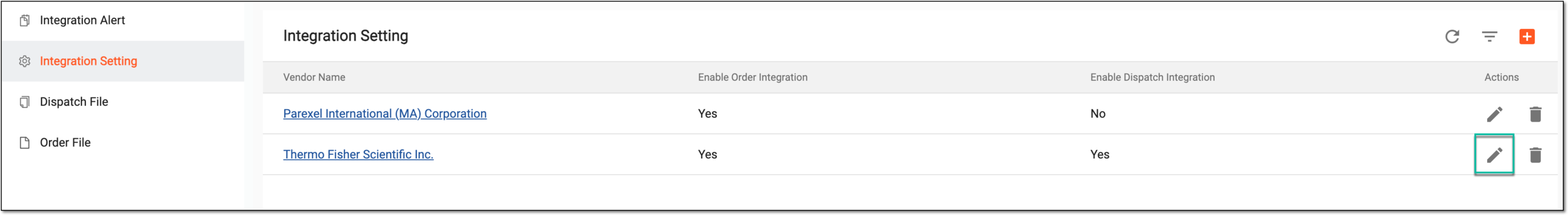

    Selecting to edit vendor setting
    Figure 2. Selecting to edit vendor setting

  4. In the Edit dialog that appears, update the vendor configuration as explained in the following table.

    Adding new vendor
    Figure 3. Adding new vendor

    Tip

    In the following table, mandatory elements are marked with an asterisk (*).

    Element

    Details

    Vendor Name*

    Represents the vendor with whom the data exchange integration is established with this setting.

    You cannot change the vendor upon editing. To establish an integration with another vendor, add a new integration setting.

    Enable Order Integration

    Select or clear the checkbox as follows:

    • Select the checkbox to establish the order integration with the vendor for the system to send the order file generated for all the supply shipments in IWRS to the vendor's server.

    • Clear the checkbox if you do not want to establish the order integration with the vendor.

    Enable Dispatch Integration

    Select or clear the checkbox as follows:

    • Select the checkbox to establish the dispatch integration with the vendor for the system to extract the dispatch file on the depot shipments from the vendor's server.

    • Clear the checkbox if you do not want to establish the dispatch integration with the vendor.

    SAVE

    Select save_button_white_red.png to apply the implemented changes.

    CANCEL

    Select cancel_button_white_blue.png to discard the changes without saving, close the dialog, and return to the Integration Setting page.

Once saved, the vendor is updated. You can proceed to configure order and dispatch integration settings for this vendor.

In this section:

In eClinical, an action of transporting items (drugs) between depots and sites. Also, an instance that represents a bundle of items being shipped together as one batch with the same shipment number (identifier) and status.

See also: return shipment and supply shipment.

A network protocol that provides file access, file transfer, and file management over any reliable data stream.
