Configure order integration setting
The integration enables the automation of data transfers between IWRS and various vendor data providers. Currently, the shipment data exchange is supported via integration. To establish the shipment data providers for your study, you add the respective vendors to the list of integrations and configure their integration settings.
One such integration type is order integration based on which the system sends the order file generated for all the supply shipments in IWRS to the vendor's server. You can configure as many order integrations as needed for your study based on the number of depots or depot groups whose shipment data must be sent out.
Important
You can only configure order integrations if this option is enabled for the vendor.
-
In the IWRS application header, select the INTEGRATION tab.
-
From the left pane, select the Integration Setting subtab.
Figure 1. Accessing integration setting
-
In the Integration Setting table that appears, locate the vendor for whom you want to configure order integration. Then from the Vendor Name column, select the hyperlink.
Figure 2. Selecting vendor to configure integration
-
On the page that opens, select the Order Integration Setting tab. Then from the workspace toolbar, select New Item
.

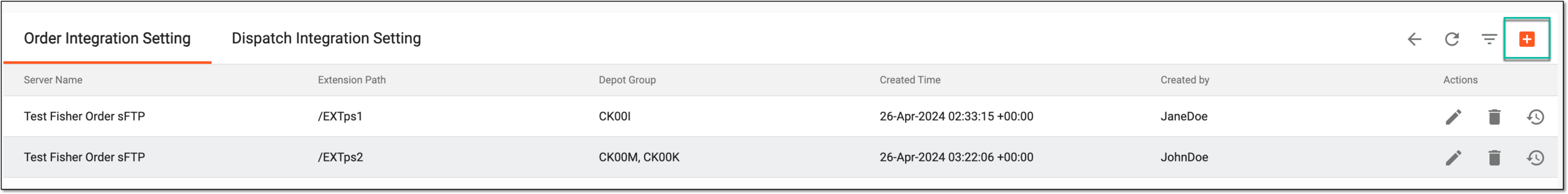

Figure 3. Adding new order integration
-
In the New dialog that appears, configure the data exchange details as explained in the following table.

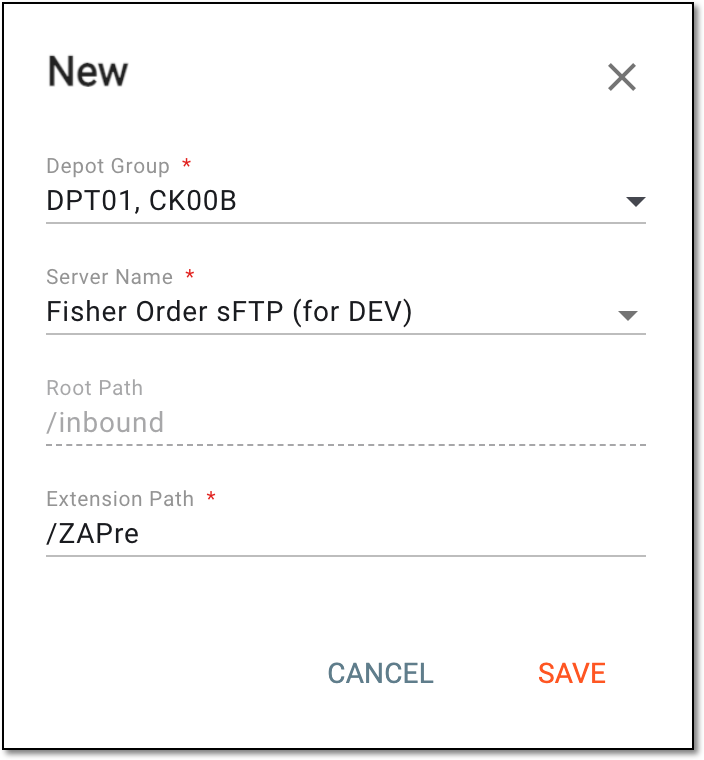

Figure 4. Configuring new order integration
Tip
In the following table, mandatory elements are marked with an asterisk (*).
Element
Details
Depot Group*
Select one or multiple depots for which the supply shipment data is to be sent to the vendor's server according to this order integration.
Server Name*
Select the field to open the Select File Server dialog and choose the vendor's server to which the shipment data is to be sent according to this order integration.

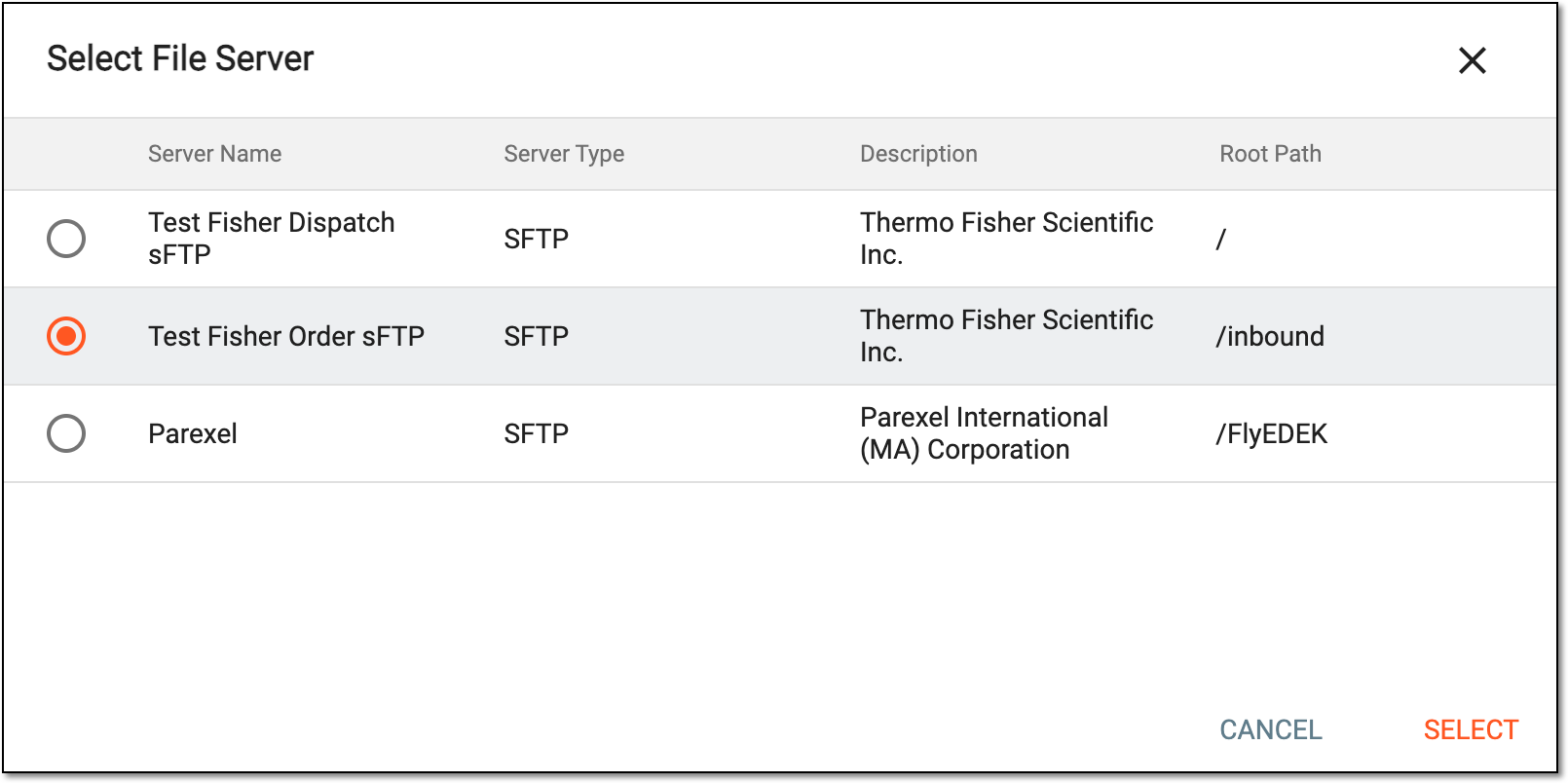

Figure 5. Selecting file server
Root Path
Represents a portion of the destination path to the server where the extracted data is to be stored. For instance, this portion can stand for the study name or company name. This value is autopopulated based on the selected file server.
Extension Path*
Enter the extension path as required according to the vendor's request. Usually, the value is preceded by a slash and is then added to the root path for the order file on the vendor's server.
The complete path to the destination folder on the file server is a combination of the root path and extension path.
SAVE
Select
to apply the implemented changes.CANCEL
Select
to discard the changes without saving, close the dialog, and return to the Order Integration
Setting table.
Upon saving, the order integration is added. Once the supply shipment is created for the specified depots, the system generates the order file and sends it to the established vendor's server.
