Go to item in dataset
The Study Designer application enables study teams to configure CRFs for clinical trial visits with a variety of tools. There are various form field options such as text fields, checkboxes, dropdown menus, date pickers, and more. You can place these fields on the form canvas, arrange them as needed, and make sure they are associated with the corresponding variables.
When maintaining a form, you have the possibility to view any item responses in the dataset. The item preview enables you to analyze how the potentially captured data will look in the output dataset upon data entry in the EDC system. It helps identify any missing or incomplete question responses, outliers, or inconsistencies. By checking the preview, you can ensure the quality and integrity of the potentially collected data.
-
In the Study Designer application header, select the CRF DESIGN tab.
-
In the toolbar, select the CRF version where you want to preview the item in the dataset.
Figure 1. Selecting unlocked CRF version
-
In the left pane that appears, expand the unique form directory of any visit. Then select the needed form.
Figure 2. Accessing form to configure
-
On the form content page that appears, next to the needed item, select More
> Go to
Dataset
.

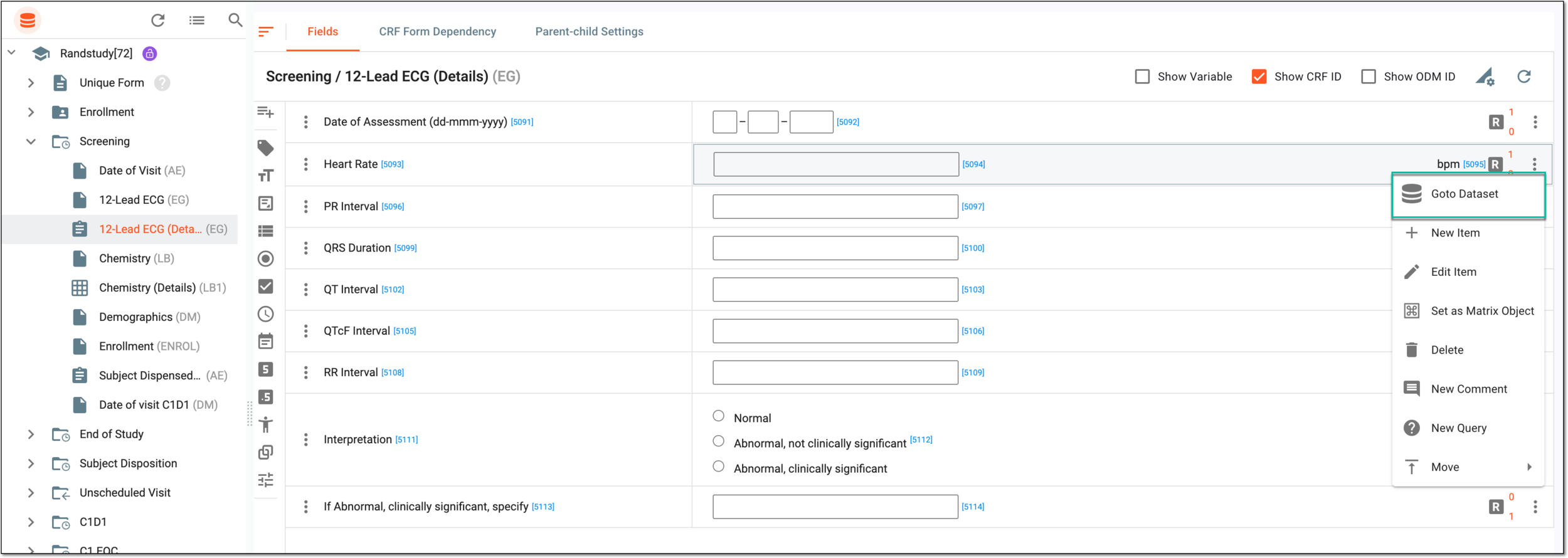

Figure 3. Selecting option to go to dataset
Tip
You can also select the floating icon
to expand and view the entire form dataset or select
to hide it. -
In the panel that expands, view how the item response will look in the output dataset upon data entry in EDC.

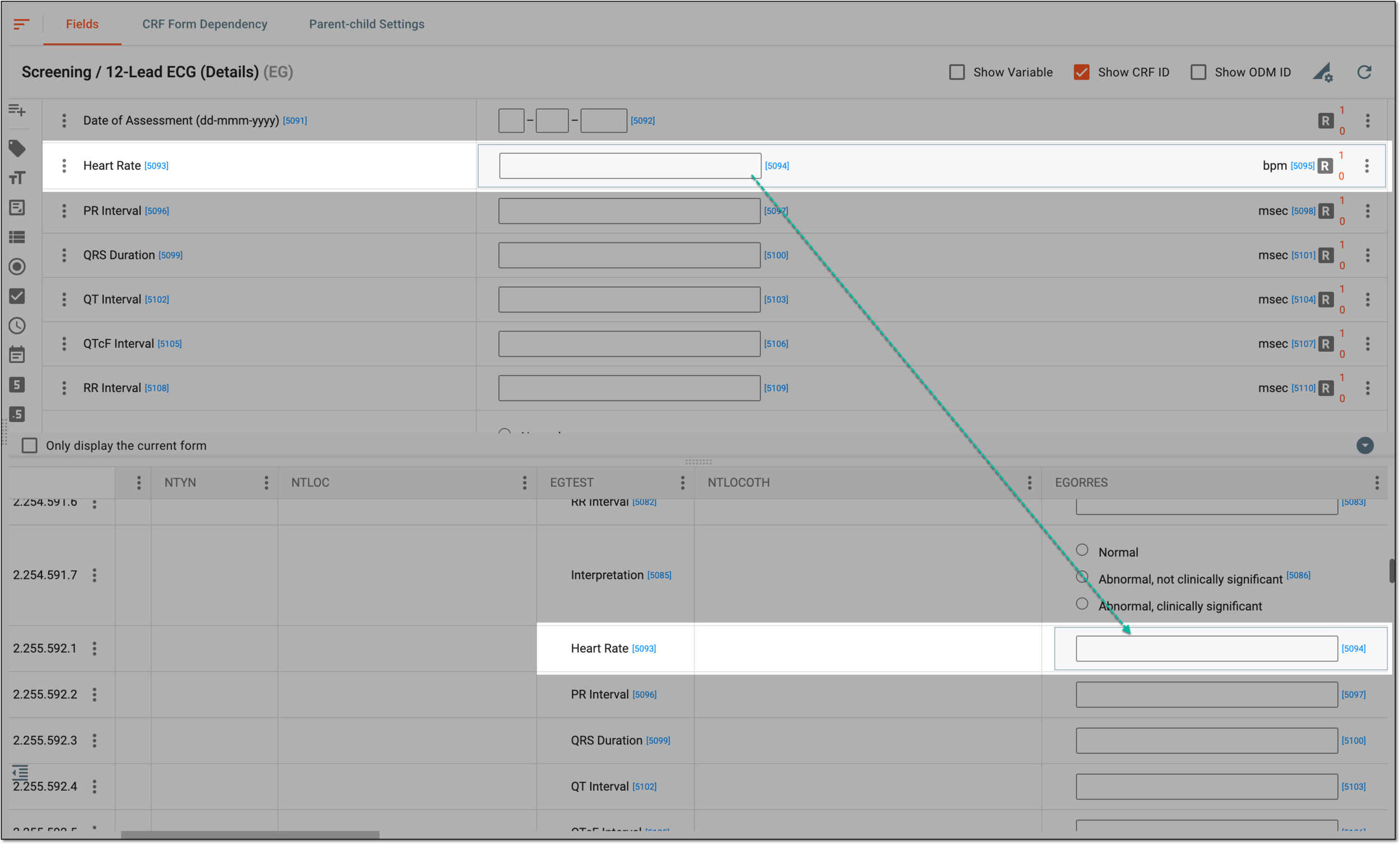

Figure 4. Viewing item in dataset
Tip
You can move columns within the dataset or update the variable details. To access these options, open More
in the needed column header to see the available actions. The position of columns and rows can also be changed by the select and drag action. Note that the applied updates will impact the final structure of the output dataset.
Once viewed, you can continue to maintain forms with available actions.
