The Study Designer toolbar is different from other eClinical applications and its structure depends on the selected tab. When working in Study Designer, consider the toolbar elements in the following tabs:

  • CRF DESIGN: the toolbar under this tab contains elements as displayed in the following figure.

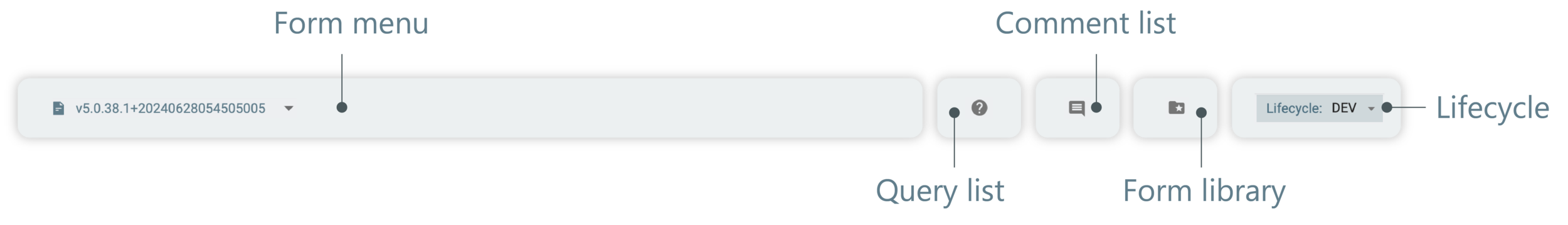

    Toolbar under CRF DESIGN tab
    Figure 1. Toolbar under CRF DESIGN tab

    • Form menu: in this dropdown menu, select a specific CRF version whose configuration you want to maintain in the application.

    • Query list: select this icon to view the list of all open queries related to CRF fields.

    • Comment list: select this icon to view the list of all open comments related to CRF fields.

    • Form library: select this icon to open the library with saved CRFs.

    • Lifecycle: in this dropdown menu, select a specific stage of a clinical trial to which you have access. There are the following lifecycles: DEV, UAT, and PROD. Data in the application can vary by the selected lifecycle.

  • RULE DESIGN: the toolbar under this tab contains elements as displayed in the following figure.

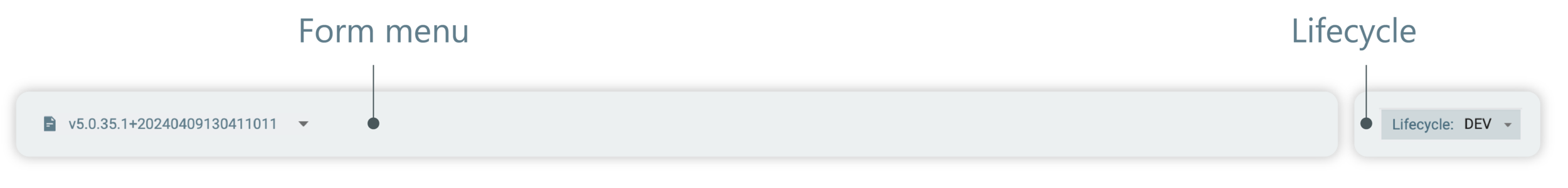

    Toolbar under RULE DESIGN tab
    Figure 2. Toolbar under RULE DESIGN tab

    • Form menu: in this dropdown menu, select a specific CRF version whose configuration you want to maintain in the application.

    • Lifecycle: in this dropdown menu, select a specific stage of a clinical trial to which you have access. There are the following lifecycles: DEV, UAT, and PROD. Data in the application can vary by the selected lifecycle.

  • CODELIST: this tab does not have a toolbar due to the specifics of the codelists configuration.

  • SUBJECT PHASE: the toolbar under this tab contains elements as displayed in the following figure.

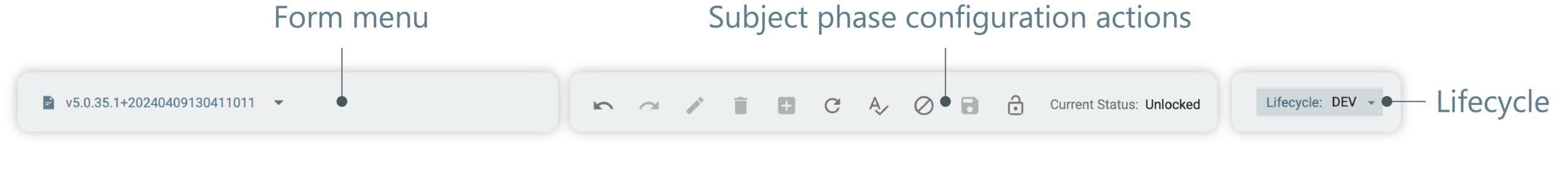

    Toolbar under SUBJECT PHASE tab
    Figure 3. Toolbar under SUBJECT PHASE tab

    • Form menu: in this dropdown menu, select a specific CRF version whose configuration you want to maintain in the application.

    • Subject phase configuration actions: this is the list of actions available for the configuration of subject phases.

    • Lifecycle: in this dropdown menu, select a specific stage of a clinical trial to which you have access. There are the following lifecycles: DEV, UAT, and PROD. Data in the application can vary by the selected lifecycle.

  • VERSIONING: this tab does not have a toolbar due to the specifics of the form versioning configuration and management.

  • TRANSLATION: the toolbar under this tab contains elements as displayed in the following figure.

    Toolbar under TRANSLATION tab
    Figure 4. Toolbar under TRANSLATION tab

    • Form menu: in this dropdown menu, select a specific CRF version whose configuration you want to maintain in the application.

    • Lifecycle: in this dropdown menu, select a specific stage of a clinical trial to which you have access. There are the following lifecycles: DEV, UAT, and PROD. Data in the application can vary by the selected lifecycle.
